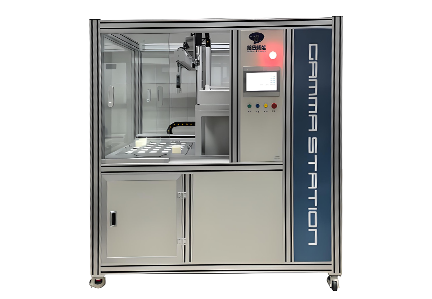

Gamma Station fully automatic integrated gamma spectrum analysis system

Gamma Station is an all-in-one automatic gamma-ray spectrometry analysis system independently developed by HAHN.This system can operate without human intervention. It uses sample data recognition system, digital processing system, database management system, and can automatically switch and measure samples of any combination and different sizes. It can also optimize measurement parameters in real time according to the user-defined specific detection protocol to achieve high-quality and optimized gamma-ray spectrometry analysis.


HIGHLIGHTS
  • High-performance, integrated, and easy to operate
  • Simultaneous detection of multiple samples at one time
  • One-click automatic control design
SPECIFICATION
Automatic analysis device

1) Mechanical arm control, including automatic and manual control, and status monitoring.

2) Batch measurement of 20 samples at one time.

3) Users can customize various parameters of the samples, set the measurement sequence and time, and automatically generate reports.

4) Built-in different sample efficiency calibration files, during analysis, only the relevant information needs to be called for.

Sample data recognition system

After the user inputs the sample data information, a corresponding QR code is printed out for the automatic identification and analysis of the sample. The digital processing system is a fully Chinese-registered interface, which can automatically realize functions such as sample energy spectrum acquisition, energy spectrum analysis, energy spectrum storage, report analysis and report printing.

Measurement and Analysis System

1) Based on the ORTEC high-purity germanium spectrometer system, upgrades to existing spectrometer systems can be carried out.

2) Automatic energy spectrum analysis, spectrum data management, report output, QA/QC management, etc., based on the ORTEC GammaVison analysis software.

3) The factory has completed the energy and efficiency calibration for three types of samples. Specialized samples can be provided with their respective energy and efficiency calibration according to user requirements.

Shielding device

1) Optional 10cm low-background lead shielding system

2) Optional 15cm ultra-low-background lead shielding system

More specifications

For detailed inquiry, please contact us at woonsky@163.com or call the hotline 18120139393.
