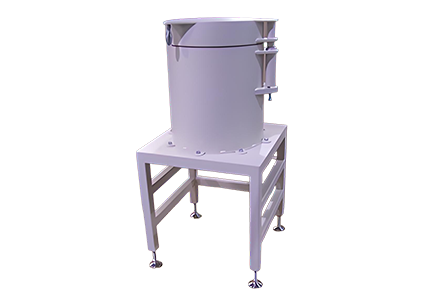

HLP Series Lead Shielded Room

The HLP series low-background lead shielding chambers are made by casting lead in one piece with low background. They offer a variety of lead materials ranging from new lead to old lead with low background for more than 50 years, corresponding to different models. The new lead is electrolytically purified and free of impurities; the old lead has been stored for at least two half-lives of Pb-210. All the lead chambers are cast in one piece professionally to avoid internal bubbling, ensuring uniform density and no weak points in shielding, and featuring high purity and low background.

HIGHLIGHTS
  • Uniform density
  • Unshielded weak points
  • High purity
  • Background low
  • Low-background lead integral casting and forming
  • Multiple materials can be selected.
SPECIFICATION
Outer layer material

0.95 cm low-carbon steel

Middle-layer material

10/15 cm low-background lead

Inner layer material

0.8 mm thick tin and 1.6 mm thick oxygen-free copper absorb X-rays.

Load-bearing table material

Low-carbon steel

Adjustment range of table legs

0-15cm

Standard inner cavity size

Φ307mm x 404mm

More specifications

For detailed inquiry, please contact us at woonsky@163.com or call the hotline 18120139393.



Model number Selection of middle-layer lead material Applicability
HLP710

External 5 cm high-purity new lead

Internal 5 cm low-background old lead

HPGe
HLP710N 10 cm tall pure new lead HPGe
HLP715

External 10 cm high-purity new lead

Internal 5 cm ultra-low background old lead

HPGe
HLP710S 10 cm tall pure new lead Fluorescent material
HLP705S 5 cm tall pure new lead Fluorescent material
